Underground Service Vehicle CY-3000 6730x1860x2050mm Fuel Transportation Truck

Product Categories

Anhui Jarlo Construction Machinery Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Model NO. : CY-3000

Transport Package : Bulk

Specification : 6730x1860x2050mm

Trademark : Jarlo

Origin : China

HS Code : 8428909090

Supply Ability : 1000 Sets/Year

Customization : Available

After-sales Service : 12 Months

Warranty : 12 Months

Place of Origin : China

MOQ : 1 set

Payment Terms : LC, T/T

Contact Now

CY-3000 Mining diesel engine trackless fuel transportation vehicle

Dimensions

Main configuration and technical parameters

Item				Unit	Parameters
Unit Performance	Overall size	L		mm	6730±50mm
		W		mm	1860±30mm
		H(Includes driver shed)		mm	2050±30 mm
	Ground Clearance			mm	≥220 mm
	Wheelbase			mm	3100mm
	Unladen mass			kg	6700 kg
	Full load mass			kg	9700 kg
Driving System Parameters	Engine			-	Cummins
	Engine power			kW	96kW/2500rpm
	Engine torque			-	520Nm / 1600rpm
	Exhaust				National 4
	Structural features			-	Central articulated, hydraulic power steering
	Steering angle			°	± 40°
	Turning radius			mm	Outer ≤5500mm
	Driving speed		Gear I	km/h	6.5±0.6 km/h
			Gear II	km/h	14±1.1 km/h
	Gradeability			%	≥25%
	Service brake			Double-axle independent hydraulic-assisted dual-circuit oil-immersed multi-disc brake
	Parking brake			Spring brake, hydraulic release, fail-safe parking brake
Optional Functions	Automatic fire extinguishing system
	Automatic lubrication system

Main technical performance characteristics

Wet multi-disc brakes and Italian SAFIM dual-circuit braking system meet the requirements for safe use in mines.
The closed cab adopts ergonomic design and meets FOPS/ROPS (anti-smash/anti-rollover) standards. It is equipped with air conditioning, a rear night vision camera and control panels inside and outside for easy operation.
The frame adopts post-weld annealing treatment and shot blasting treatment to eliminate welding stress and ensure the quality of the whole machine.
The self-made super-performance engineering chassis has a compact body and high maneuverability and operability in mine tunnels.
The main accessories purchased are from well-known domestic brands, which can ensure the normal operation of the equipment, ensures low failure rate and less maintenance frequency.
Using Cummins engine, which has good fuel economy, excellent climbing ability and power performance.

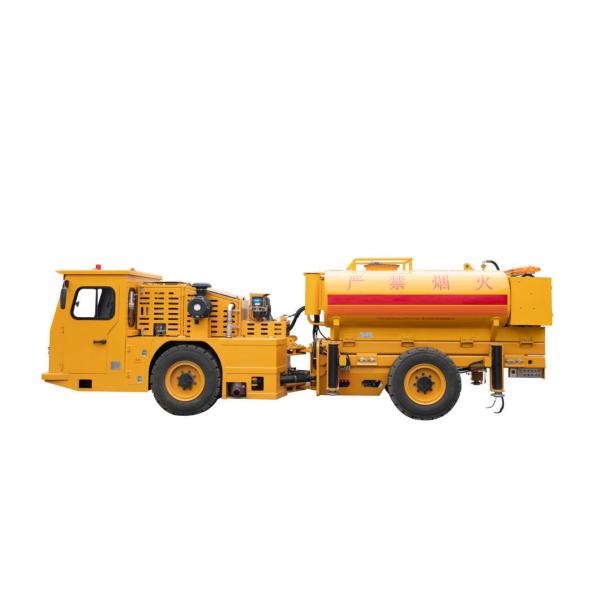

Underground Service Vehicle CY-3000 6730x1860x2050mm Fuel Transportation Truck Images
