| Items | Parameters and Configuration | Remarks |

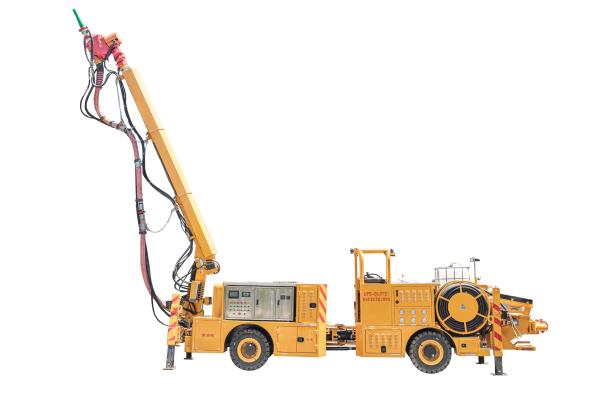

| Model | UPS-20JT(E) | |
| Total Weight(kg) | 10700 | |
| Dimension(L×W×H,mm) | 7670×2050×2350(±50) | |
| Actual concrete spraying capacity | 20 | |
| Power mode (dual power) | Driving: Diesel engine (retractable boom, pumping and cleaning equipment) Working: External 380V AC | |
| Total power (engine/motor, kw) | Engine:96 kw Motor:37+37(Totally 74 kw) | |
| Maximum concrete spraying pressure | 7.5 (MPa) | |
| Configuration | | |
| Chassis | Engine | Type | Four-cylinder water-cooled turbo | High pressure common rail |
| Manufacturer | Cummins | |
| Rated power | 96/2500 | |
| Exhaust emission standard | National IV | |
| Driving and steering | 4-Wheel drive, articulated steering | |
| Articulate Steering Angle(°) | 40 | |
| Brake system | Driving: hydraulic wet type Parking: spring brake, hydraulic release | |
| Gradeability | 20 | |
| Turning radius | 3950/5850 | |
| Driving speed | Max. 12km/h | |
| Min. Ground Clearance | ≥260 | |
| FOPS & ROPS | Satisfied | |
| Concrete jet pump | Type | Piston pumping system | |
| Capacity | 20m3/h | |
| Concrete specification | Slump | 12～18 | |
| Max.Aggregate size | 25(mm) | |
| Shotcrete aggregate particle size | Max. 25(mm) | |
| Concrete delivery valve type | S shape pipe Valve | |
| Concrete pumping pressure | 7.5 | |
| Concrete bore size × stroke | φ160*800mm | |
| Main cylinder diameter | 90mm | |
| Hopper capacity | 0.4 cbm | |
| Hopper loading height | 1.25m | |
| Vibrator | 380V | |
| concrete spraying machine | Structure | Main arm rotation, spray arm pitch + telescopic | |
| Maximum effective spray range | Upward | 10 | |
| Forward | 8 | |
| Downward | 3 | |
| Width | 16 | |
| Boom rotation angle | 360° | |
| Boom pitch range | (Upward 64° / Downward 40° ) | |
| Axial rotation range of nozzle seat | 360 | |
| Axial swing range of nozzle seat | 240 | |
| Boom proportional multi-way valve | Load sensing | |
| Nozzle swaying angle+movement | 8°*360° Rotation | |
| Operation | Dual control: 100 meters wireless remote control + 16 meters wired | |
| Remote control system | Available | |
| Conveying pipeline(mm) | Steel pipe:80 Hose pipe:76 | |
| Conveying pipeline cleaning | Water+Air Washing | |
| Hydraulic system | Main oil pump | Type | Electric proportional piston pump | |
| Rated pressure | 28(MPa) | |
| Flow | 110(L/min) | |
| Auxiliary oil pump | Type | Electric proportional piston pump | |
| Rated pressure | 28(MPa) | |
| Flow | 41(L/min) | |
| Air compressor | Nominal volume flow | 7.3(m3/min) | |
| Motor nominal power | 37(kW) | |
| Exhaust pressure | Rated pressure 0.55MPa | |
| Accelerator automatic batching system | Form | Hose pump | |
| Flow(L/h) | 0～800(L/h) | |
| Delivery pressure | 10(bar) | |
| Accelerator tank volume | 500(L) | |
| High Pressure washing pump | Max. Output pressure | 15(MPa) | |
| Output flow | 15(L/min) | |
| Water tank capacity(L) | 175(L) | |
| Electrical System | Motor protection level | IP55 | |
| Safety protection | Leakage protection, safety grounding | |
| Controller | Special controller, Germany IFM | |
| Cable | Cable reel drive method | Hydraulic drive | |
| Cable specification | 3*50m+1*16m | |
| Cable length | 100(m) | |
| External power requirements | AC 380V,200KVA | |
| Others | Working lights | LED | |
| Hydraulic outriggers | Available | |
| DOC+CDPF | Available | |
